Types of Garage Doors in Calgary
Five distinct garage door types, each designed for different situations. Use this guide to find the right door before requesting a quote.
Free Consultation — (403) 990-9536Quick Decision Guide
Not sure where to start? Find your situation below.
| Your Situation | Best Door Type |
|---|---|
| Standard garage, typical ceiling height | Overhead Sectional Door |
| Need frequent pedestrian access, no side entry | Walk-Through Door |
| Low headroom, ceiling obstructions | Side-Hinged or Side-Sliding |
| Car lift or ceiling-mounted equipment | Side-Sliding Door |
| Want traditional carriage-house look | Side-Hinged Door |
| Upgrading front door + garage together | Matching Door Set |
Overhead Sectional Doors
The standard garage door found in 95%+ of Calgary homes. Panels roll up along ceiling-mounted tracks with an overhead opener.
When to Choose This Door
- •Standard headroom (12″+ above the door opening)
- •Widest selection of styles, colors, and materials
- •Multiple price points — budget to premium
- •Automated operation with standard openers

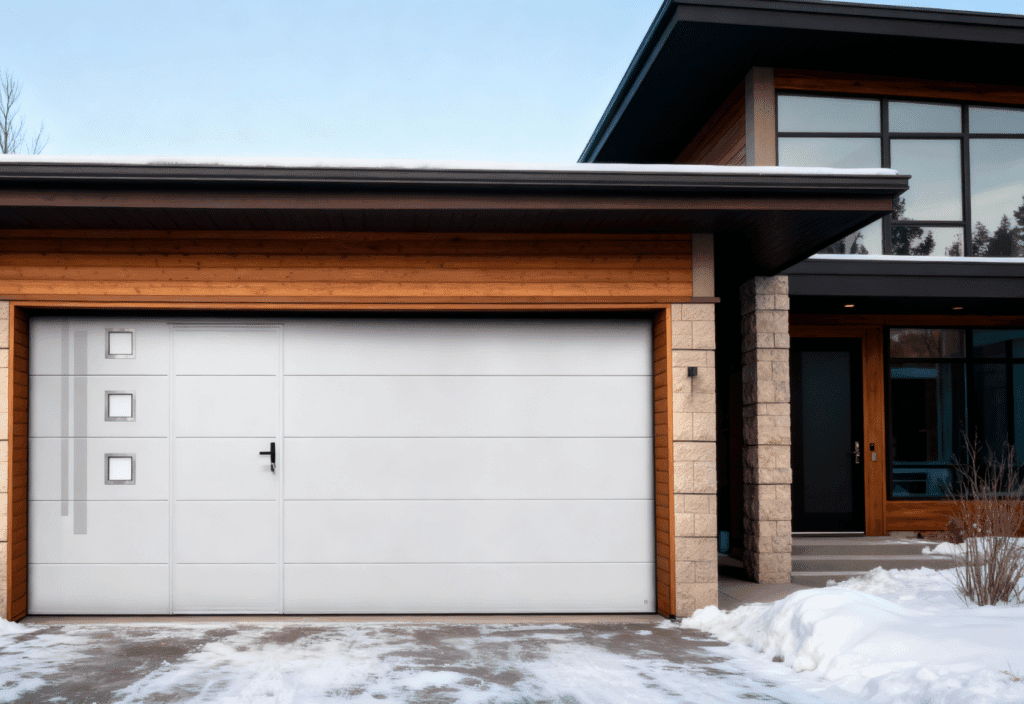

Walk-Through Doors (Wicket Doors)
A pedestrian door built directly into the garage door panel — enter without opening the full door.
When to Choose This Door
- •Your garage is your primary entry point (no side door)
- •Workshop, gym, or hobby space use
- •Conserve energy by not opening the full door in winter
- •Emergency egress if your opener fails

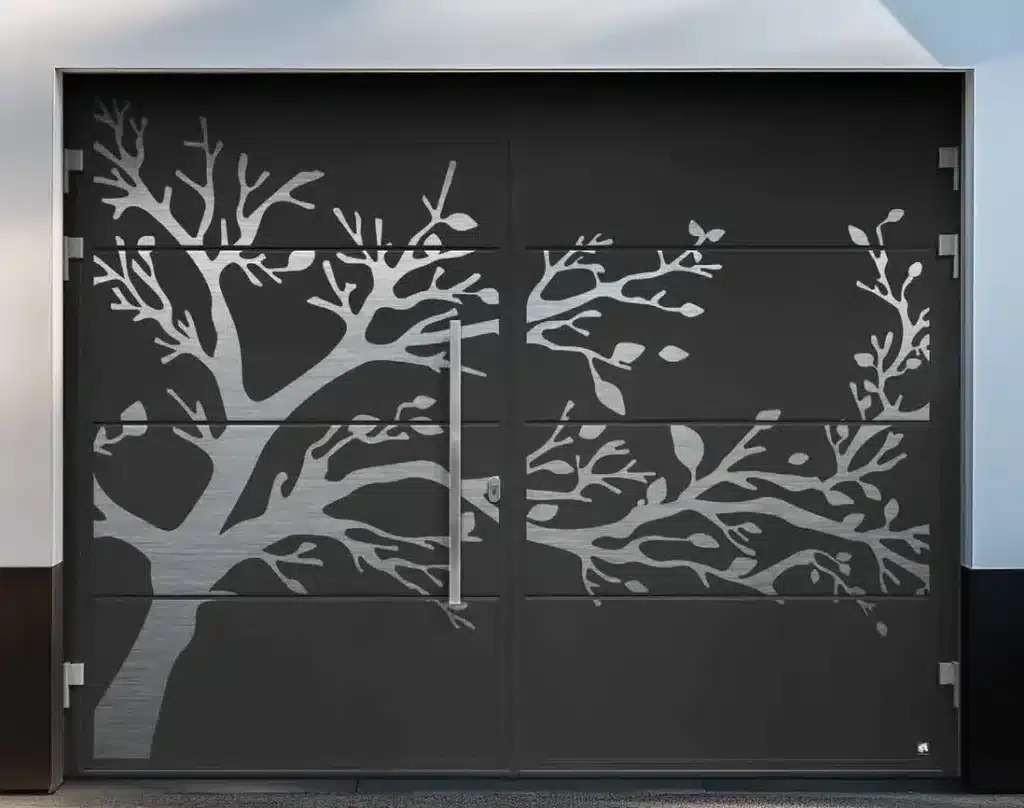

Side-Hinged Doors
Traditional swing-out doors on hinges at the sides of the opening — like large double doors swinging outward.
When to Choose This Door
- •Very low headroom — can't accommodate overhead tracks
- •Ceiling-mounted obstacles (pipes, beams, HVAC)
- •Distinctive traditional or carriage-house aesthetic
- •Prefer manual operation or spring-free systems
Side-Sliding Doors
Doors that travel horizontally along a wall-mounted track. No ceiling clearance needed — just interior wall space.
When to Choose This Door
- •Car lift or ceiling-mounted equipment
- •Severe ceiling obstructions preventing overhead tracks
- •Eliminate spring and cable maintenance entirely
- •Partial opening for pedestrian access (stop at any point)

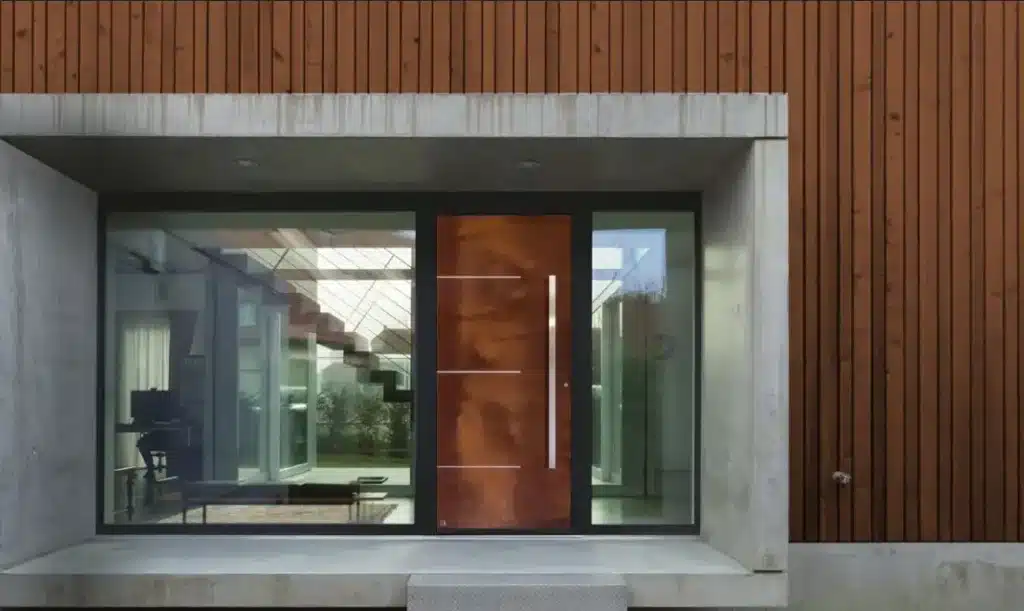

Entry Doors
Premium front entry doors from Ryterna — the same European manufacturer that produces our garage doors. Available with matching aesthetics.
When to Choose This Door
- •Replacing or upgrading your front entry door
- •Match garage door and front door in style and color
- •Premium security (RC2/RC3 rated, multi-point locking)
- •Smart access options (fingerprint, keypad, smartphone)

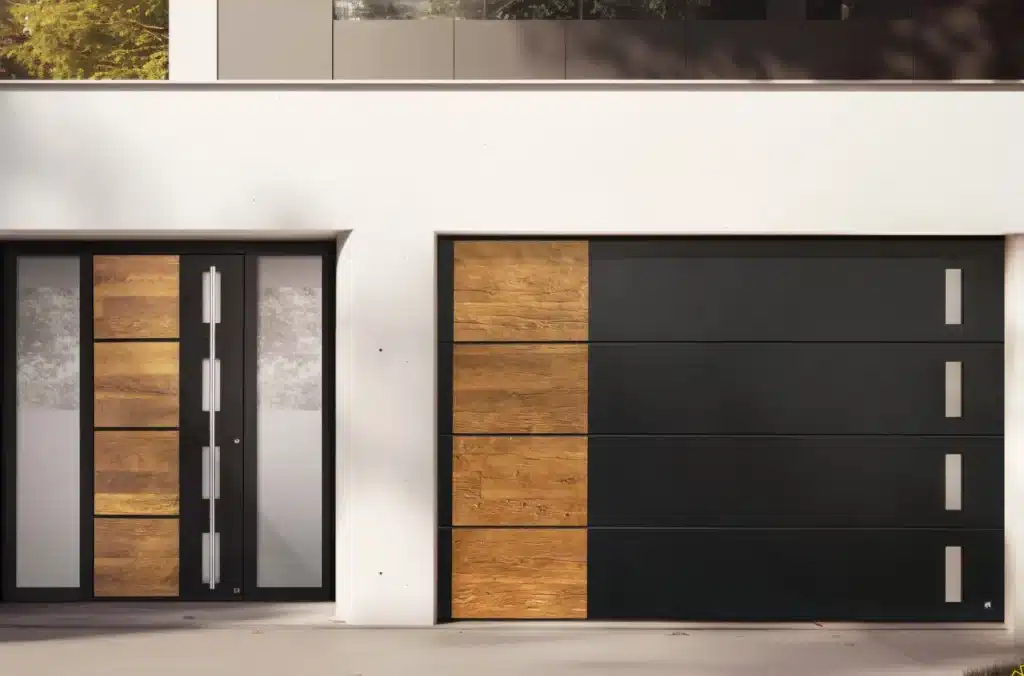

Matching Garage & Entry Door Sets
Coordinated garage door and front entry door packages with matching colors, panel designs, hardware finishes, and decorative elements.
When to Choose This Door
- •Building a new home or doing a major renovation
- •Curb appeal and resale value are top priorities
- •Distinctive, architecturally cohesive look
- •Single company for both doors
Door Type Comparison at a Glance
Side-by-side feature comparison for all garage door types.
| Door Type | Low Headroom | Car Lift OK | Pedestrian Access | Automation | Availability |
|---|---|---|---|---|---|
| Overhead | Depends | No | Add-on | Standard | Wide |
| Walk-Through | Depends | No | Built-in | Standard | Ryterna |
| Side-Hinged | Yes | Yes | Optional | Optional | Ryterna |
| Side-Sliding | Yes | Yes | Partial | Optional | Ryterna |
| Entry Doors | N/A | N/A | Standard | Smart lock | Ryterna |
Frequently Asked Questions
Overhead sectional doors account for over 95% of residential garage doors in Calgary. They work with standard configurations, are compatible with most openers, and offer the widest range of styles and price points.
Yes, but it may require modifications. Switching from overhead to side-hinged requires removing ceiling tracks. Switching to side-sliding requires interior wall space. We assess your garage during the free consultation and advise on feasibility and costs.
Standard overhead doors need about 12 inches of clearance above the door opening. Low-headroom track systems can reduce this to 6–8 inches. Less than 6 inches, or ceiling obstructions, may require side-hinged or side-sliding.
Side-sliding doors have the lowest maintenance requirements because they don't use torsion springs or cables — the components that fail most often. Overhead and walk-through doors require periodic spring adjustment and eventual spring replacement.
Yes, specialty doors typically cost more than standard overhead doors. However, the right door type for your situation can save money long-term through reduced maintenance, energy savings, or avoiding costly garage modifications.
15+ years in the garage door industry, 32,000+ residential and commercial installs across Calgary. BBB-accredited. Registered trademarks in Canada (TMA1352082) and the United States (98141232).
