Garage door bottom seal replacementis a service that involves removing a worn, cracked, or damaged rubber seal (also called weatherstrip or astragal) from the bottom edge of your garage door and installing a new one to block drafts, water, dust, pests, and debris. In Calgary, bottom seal replacement costs$180–$340 + GSTdepending on door size and whether the retainer needs replacement. AtCalgary Garage Door Fix, we provide same-day seal replacement across Calgary—call(403) 990-9536to stop cold air and water from entering your garage.

The bottom seal is your garage door’s first line of defense against Calgary’s harsh elements. When it fails, you’ll notice cold drafts in winter, water pooling after rain or snowmelt, dust and debris accumulating on your garage floor, and possibly mice or insects finding their way inside. A new seal restores protection and can even improve your home’s energy efficiency.

What Is a Retainer and When Does It Need Replacement?

When seal-only replacement works:

When you need retainer + seal replacement:

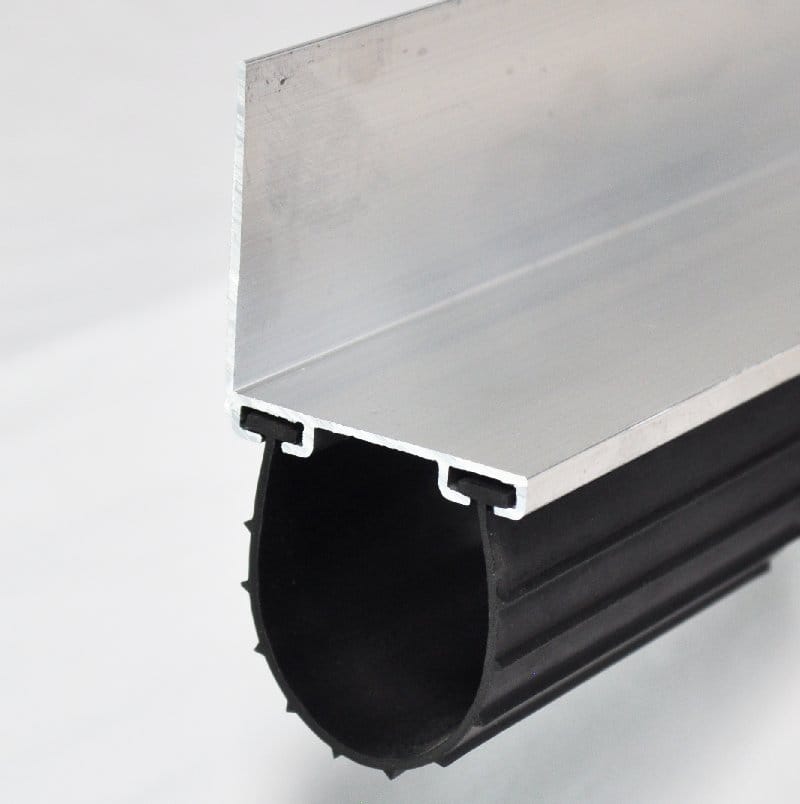

Theretainer(also called a seal retainer or astragal retainer) is the aluminum or plastic channel attached to the bottom panel of your garage door that holds the rubber seal in place. The seal slides into or clips onto this retainer.

When retainer replacement is needed, we install a durableL-shaped aluminum retainerthat will last for many years. This is a significant upgrade over plastic retainers, which crack in Calgary’s cold winters.

• Retainer is straight and undamaged
• No rust, cracks, or missing sections
• Seal slides in and out easily

• Retainer is cracked, bent, or warped
• Sections are corroded or rusted through
• Pieces are missing or broken off
• Old retainer won’t hold the new seal properly
• Previous seal was glued or stapled (improper installation)

Signs Your Bottom Seal Needs Replacement

Visible Damage

Performance Issues

Bottom seals typically last 5–10 years in Calgary, but our extreme climate can shorten that lifespan significantly. Here’s how to know if yours needs replacement:

• Cracking or splitting— Rubber has dried out and cracked
• Flattening— Seal is compressed and no longer springs back
• Brittleness— Rubber crumbles or breaks when touched
• Missing sections— Pieces have broken off completely
• Hardening— Seal feels stiff instead of flexible

• Visible light— You can see daylight under the closed door
• Water entry— Puddles form inside after rain or snowmelt
• Cold drafts— Noticeable cold air coming from the garage in winter
• Dust accumulation— More dust and debris than usual on the garage floor
• Pest evidence— Signs of mice or insects entering the garage
• Increased heating costs— Noticeable if you have a heated garage

Types of Garage Door Bottom Seals

T-Style Seals (T-End or T-Bulb)

Beaded Seals (Bead-End)

J-Type Seals

Bulb Seals

There are several types of bottom seals, and we install the right type for your door:

The most common type. Features a T-shaped profile that slides into a retainer channel. Easy to replace and provides excellent sealing. Works with most standard garage doors.

Has rounded beads on each edge that snap into a grooved retainer. Common on older doors. Provides good sealing but can be harder to find replacements for.

J-shaped profile that wraps around the bottom of the door. Often found on wooden doors or doors without a retainer channel.

Features a rounded bulb at the bottom that compresses against the floor. Excellent for uneven floors as the bulb conforms to surface irregularities.

Our technician will identify your seal type and install the correct replacement. If your current seal type isn’t performing well, we may recommend a different style better suited to your floor conditions.

Our Bottom Seal Replacement Process

Here’s what to expect when Calgary Garage Door Fix replaces your bottom seal:

1. Inspection (5 min)We examine the existing seal, retainer condition, bottom panel, and floor contact to determine the right solution.

2. Retainer AssessmentIf the retainer is damaged, we’ll explain why it needs replacement and the cost difference before proceeding.

3. Old Seal Removal (5–10 min)The old seal is carefully removed from the retainer. If replacing the retainer, the old retainer is also removed.

4. Retainer Installation (if needed, 15 min)New L-shaped aluminum retainer is measured, cut to size, and securely attached to the bottom panel.

5. New Seal Installation (10 min)The new rubber seal is slid into the retainer channel and positioned for optimal floor contact.

6. Adjustment & Testing (5 min)The door is cycled several times to verify the seal makes proper contact. Minor adjustments are made if needed.

Total time:30–45 minutes for seal only; 45–60 minutes if retainer replacement is needed.

Why Calgary Homeowners Choose Us

• Transparent pricing— Exact costs explained before we start
• Honest assessments— We’ll tell you if a seal won’t fix your problem
• Quality materials— Durable rubber seals and aluminum retainers
• Same-day service— Most appointments completed same day
• 2,600+ five-star reviews— Calgary’s highest-rated garage door company
• Complete inspection included— We check your entire door system during every visit
• Local family business— Serving Calgary since 2019
